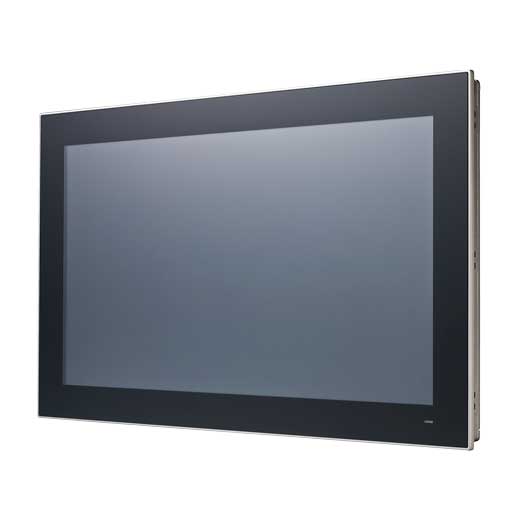

PPC-3211SW-P63B lüfterloser Panel PC
Der PPC-3211SW-P63B ist ein lüfterloser Panel PC mit einem leistungsstarken Intel Dual-Core i3-6100U Prozessor.
Das 21,5" Full HD TFT-Display hat einen Projected Capacitive Multitouchscreen. Der Panel-PC verfügt über zwei Gigabit Ethernet Schnittstellen und eine große Anzahl an Seriellen- und USB-Ports, somit wird eine flexible Einbindung in bestehende Netzwerkstrukturen garantiert. Dank des mini PCIe Slots kann der PPC-3211SW-P63B mit einem Addon-Board an viele Applikationen, aus dem Bereich der industriellen Automation, angepasst werden.
Ausgangsspannung 22 ~ 26 VDC (4,2 A)
Highlights:- robustes und kompaktes Design
- CPU: Intel Dual-Core i3-6100U
- Taktrate: 2,3 GHz
- Display: 21,5" Full HD TFT-Display
- Backlight: LED
- Auflösung: 1920 x 1080 Pixel
- Helligkeit: 300 cd/qm
- Kontrast: 5000:1
- Touchscreen: projected capacitive Multi-Touch
- Arbeitsspeicher: bis zu 16 GB DDR4-SDRAM
- LAN: 2 x 10/100/1000BaseT (RJ-45)
- Grafikinterface: HDMI
- I/O-Ports: 2 x RS-232, 1 x RS-422/485, 2 x USB 3.0, 2 x USB 2.0
- Storage: 2 x 2,5" SATA HDD/SSD, 1 x mSATA
- Erweiterungsslots: 1 x Mini PCIe
- Frontblende: IP65
- Versorgungsspannung: 12 ~ 24 VDC
- Arbeitstemperatur: 0 ~ 45 °C
- Abmessungen (BxHxT): 558,4 x 349,8 x 62,25 mm
- Unterstützte Betriebssysteme: Windows 10, 10 LTSB, Linux
